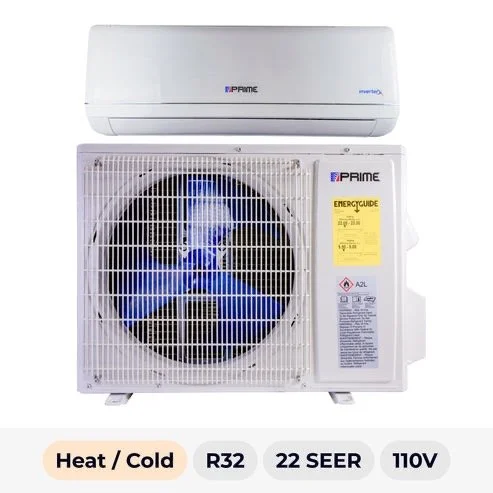

The PRIME 12000 BTU W-1 Mini Split System delivers year-round comfort for rooms up to 550 sq. ft. Engineered with a high-efficiency 22 SEER2 upgraded 120Hz inverter compressor and eco-friendly R-32 refrigerant, this ductless mini split air conditioner and heat pump provides powerful cooling and heating while lowering energy costs. Runs on standard 110V power — no special wiring needed.
Built for durability in coastal and humid climates, it features Hydrophilic Aluminium Fins and Gold Shield Anticorrosive Coating on the condenser coils. Built-in Wi-Fi control lets you manage your system remotely from your phone. AHRI Certified, ETL Listed, and A2L Safety Rated for verified performance you can trust.
Features
Upgraded 120Hz Inverter Compressor — high-frequency, multi-stage motor for stable, ultra-quiet operation
AHRI Certified — independently verified capacity and efficiency ratings
Pre-charged with R-32 Refrigerant — lower GWP, higher energy efficiency
Wi-Fi Control — adjust temperature and modes from your smartphone
30s Fast Cooling — rapid temperature drop when you need it fast
High Temperature Heating 60°C — powerful heating performance in cold conditions
Low Temperature Cooling -20°C — reliable cooling even in extreme outdoor conditions
Hydrophilic Aluminium Fin — improved heat exchange and corrosion resistance
Automatic Self-Cleaning — self-drying function prevents mold and odor buildup
High Temperature Sterilization — UV sterilization for cleaner indoor air
Fluoride Leakage Protection — built-in safety shutoff on refrigerant leak detection
Included Line Set & Cable — everything needed for a complete installation
Sleep Mode, Auto Restart & Timer — set-and-forget convenience
Documentation
Technical Specifications
GeneralModel (Evaporator / Condenser)EMPRN121-W1 / CMPRN121-W1Power Supply115V / 60Hz / 1PhRefrigerantR-32Refrigerant Charge500gCooling PerformanceRated Cooling Capacity12,000 BTU/h (800–4,100W range)Rated Power Consumption – Cooling1,040W (230–1,400W range)Rated Running Current – Cooling9.1A (2.0–11A range)SEER222 W/WHeating PerformanceRated Heating Capacity12,000 BTU/h (800–4,100W range)Rated Power Consumption – Heating1,040W (250–1,400W range)Rated Running Current – Heating9.2A (2.2–11A range)SCOP Heating9 W/WElectricalMax Input Power1,600WMax Input Current11AAir & NoiseAir Flow Volume600 m³/hNoise Level42 dB(A)Dimensions & WeightIndoor Unit Weight8 kg / 17.64 lbsOutdoor Unit Weight23 kg / 50.71 lbs
