The PRIME 24000 BTU W-1 Mini Split System delivers year-round comfort for rooms up to 1,200 sq. ft. Engineered with a high-efficiency 19 SEER2 upgraded 120Hz inverter compressor and eco-friendly R-32 refrigerant, this ductless mini split air conditioner and heat pump provides powerful cooling and heating while lowering energy costs. Requires 208–230V power supply.

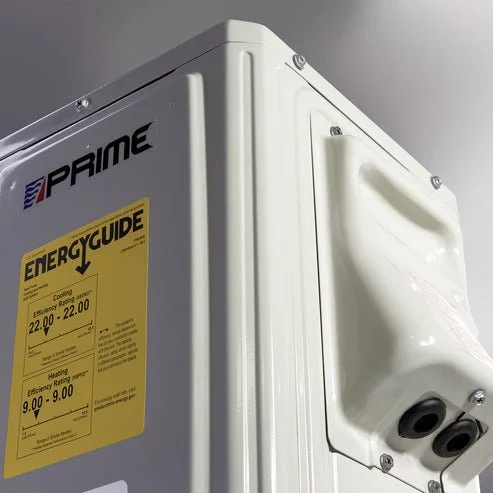

Built for durability in coastal and humid climates, it features Hydrophilic Aluminium Fins and Gold Shield Anticorrosive Coating on the condenser coils. Built-in Wi-Fi control lets you manage your system remotely from your phone. AHRI Certified, ETL Listed, and A2L Safety Rated for verified performance you can trust.
Features
Upgraded 120Hz Inverter Compressor — high-frequency, multi-stage motor for stable, ultra-quiet operation
AHRI Certified — independently verified capacity and efficiency ratings
Pre-charged with R-32 Refrigerant — lower GWP, higher energy efficiency
Wi-Fi Control — adjust temperature and modes from your smartphone
30s Fast Cooling — rapid temperature drop when you need it fast
High Temperature Heating 60°C — powerful heating performance in cold conditions
Low Temperature Cooling -20°C — reliable cooling even in extreme outdoor conditions
Hydrophilic Aluminium Fin — improved heat exchange and corrosion resistance
Automatic Self-Cleaning — self-drying function prevents mold and odor buildup
High Temperature Sterilization — UV sterilization for cleaner indoor air
Fluoride Leakage Protection — built-in safety shutoff on refrigerant leak detection

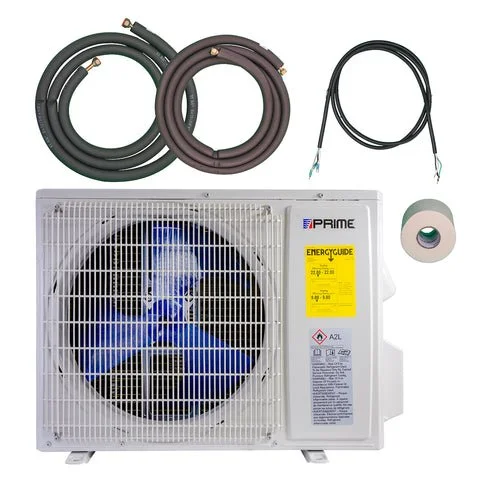

Included Line Set & Cable — everything needed for a complete installation
Sleep Mode, Auto Restart & Timer — set-and-forget convenience
Documentation
GeneralModel (Evaporator / Condenser)EMPRN242-W1 / CMPRN242-W1Power Supply208–230V / 60Hz / 1PhRefrigerantR-32Refrigerant Charge1,300g / 45.9 ozCooling PerformanceRated Cooling Capacity24,000 BTU/h (1,800–7,600W range)Rated Power Consumption – Cooling2,100WRated Running Current – Cooling10ASEER219 W/WHeating PerformanceRated Heating Capacity24,000 BTU/h (1,800–7,600W range)Rated Power Consumption – Heating2,200WRated Running Current – Heating10AHSPF28.5 BTU/W·hElectricalMax Input Power3,400WMax Input Current16AAir & NoiseAir Flow Volume1,300 m³/hNoise Level50 dB(A)Dimensions & WeightIndoor Unit Weight13 kg / 28.66 lbsOutdoor Unit Weight31.5 kg / 69.45 lbs
